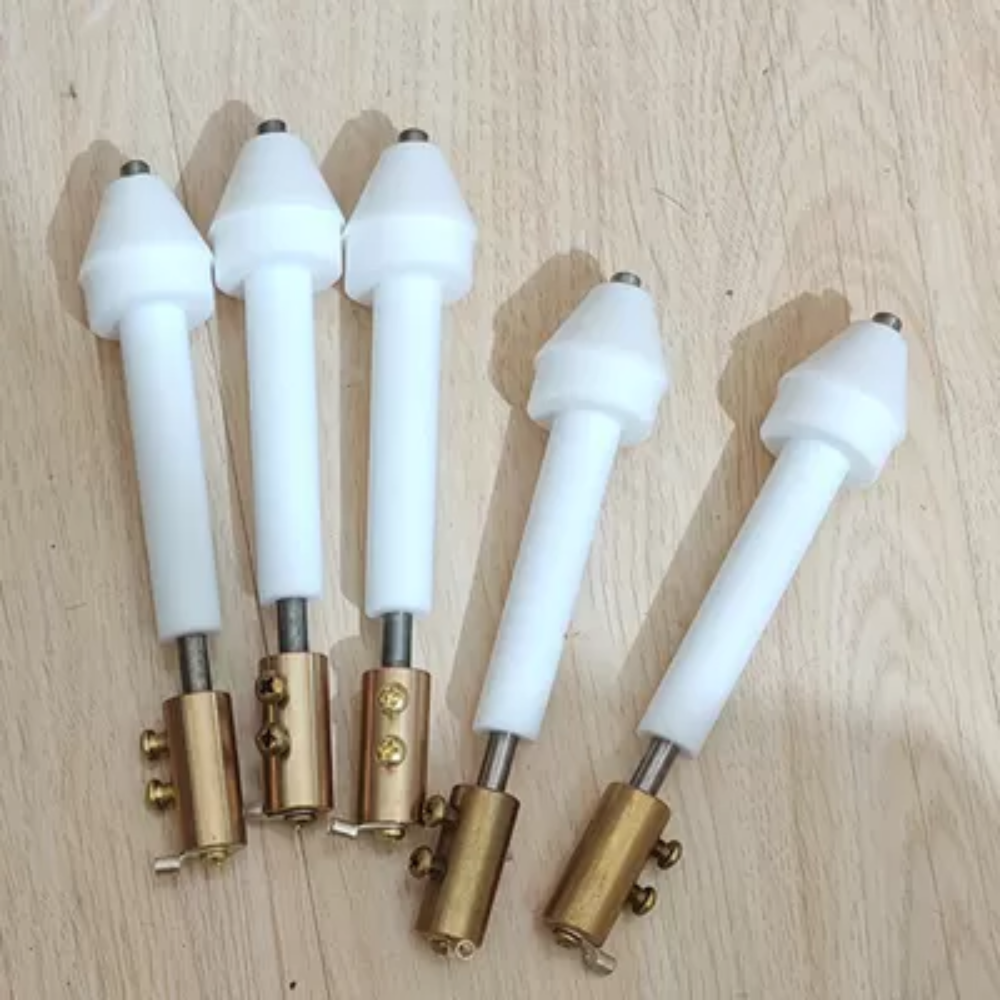

Reference Electrode

The reference electrode is an indispensable sensing and benchmarking unit in industrial anodic protection systems, which are widely applied to protect stainless steel and alloy equipment in highly corrosive media such as sulfuric acid and chemical electrolyte environments. Unlike auxiliary anodics that conduct current, it does not bear any load current and only functions to provide a stable, standard potential reference for potential measurement and automatic system control.

The core working principle relies on its highly stable electrochemical potential that remains unaffected by changes in ambient medium, temperature and operating current. During system operation, the reference electrode forms a complete electrochemical detection loop with the protected metal structure and the electrolyte medium. It continuously collects the real-time potential data of the metal surface and transmits the potential difference signal to the supporting potentiostat.

Anodic protection works by maintaining the metal potential within a specific passivation range to form a dense and anti-corrosive oxide film. Slight potential deviation will cause the metal to fall out of the passivation zone, leading to passive film dissolution and accelerated corrosion. The reference electrode acts as the system’s “precision scale”, capturing tiny potential fluctuations instantly. Once the monitored potential deviates from the preset safe range, the potentiostat automatically adjusts the output anodic current based on the feedback signal from the reference electrode.

Common types used in anodic protection include copper-copper sulfate electrodes and silver-silver chloride electrodes, selected according to medium characteristics and working temperature. Their installation position directly affects detection accuracy, usually arranged close to the protected metal surface to reduce IR drop errors. In long-term industrial operation, stable reference electrode performance ensures the automatic and efficient operation of the anodic protection system, avoids over-protection or under-protection, extends the service life of chemical equipment, and reduces industrial corrosion maintenance costs.
